Odin R surface Solo

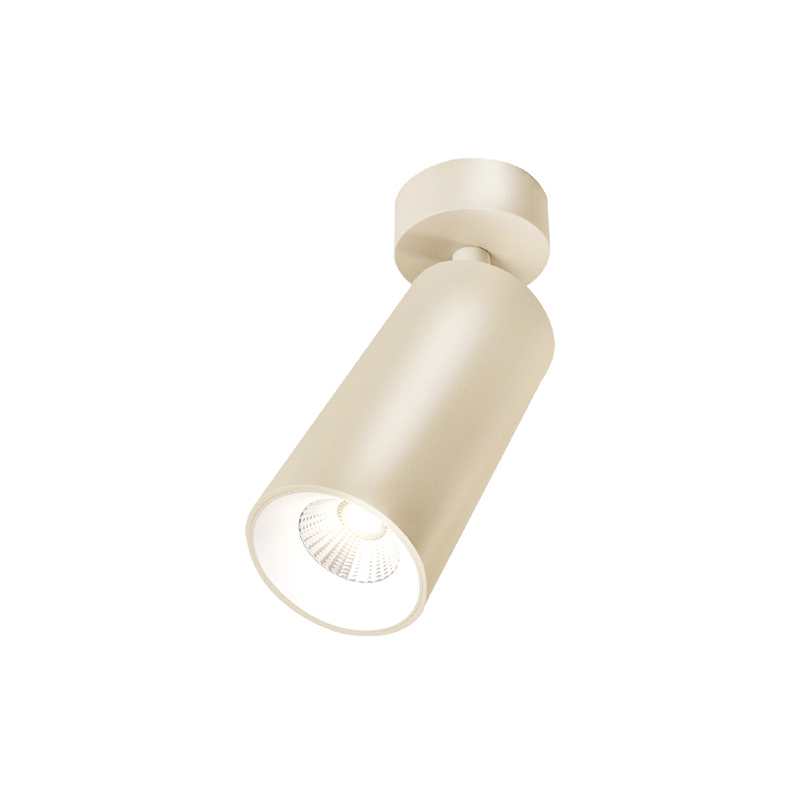

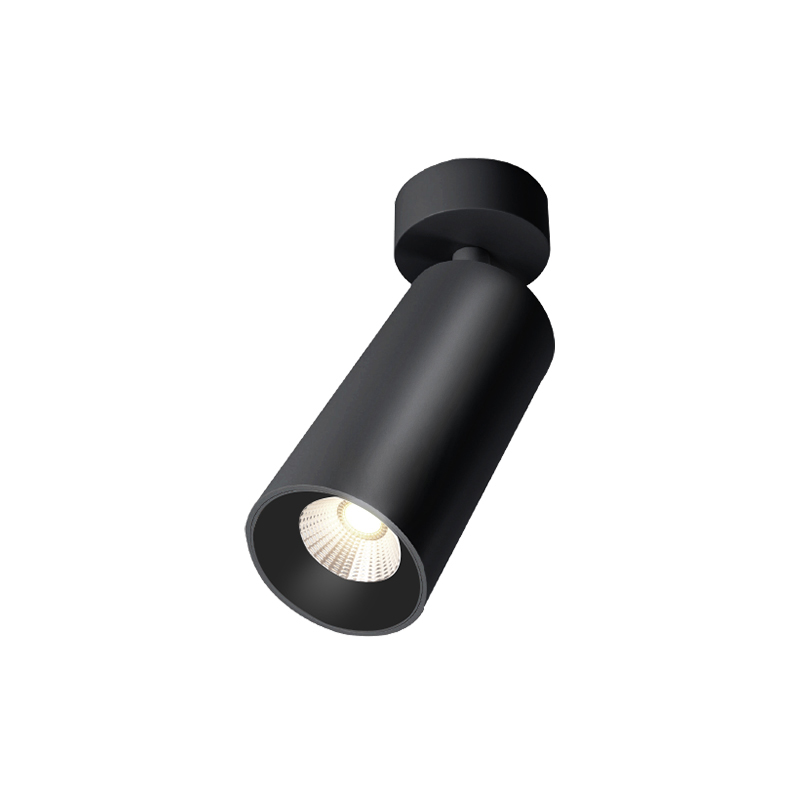

A surface mounted fixture, designed for indoor spaces in a round die cast aluminum housing. Odin has an extended light head, to tilt and turn in any direction. The fixture is available in 4 different sizes.

Clear
Odin
OP0FU

The tilt angle is perfect for general, accent & wall washing applications. The fixture is completely flexible with a variety of sizes, beam angles and filtering accessories, & to blend with its environment smoothly the fixture can be executed in 5 different color finishes.

LED Type

COB LED

Power Consumption

8W, 15W, 25W, 30W

CCT

2700K, 3000K, 4000K, 5000K

CRI

80+, 90+

Light Emission Beam

15°, 25°, 38°, 60°

Dimming Types

1-10V, DALI, On / Off, Phase dimming

Body Finish

White, Black, Grey, Gold, Copper

Product Shape

Round Single Spot

Dimensions (ø-H)

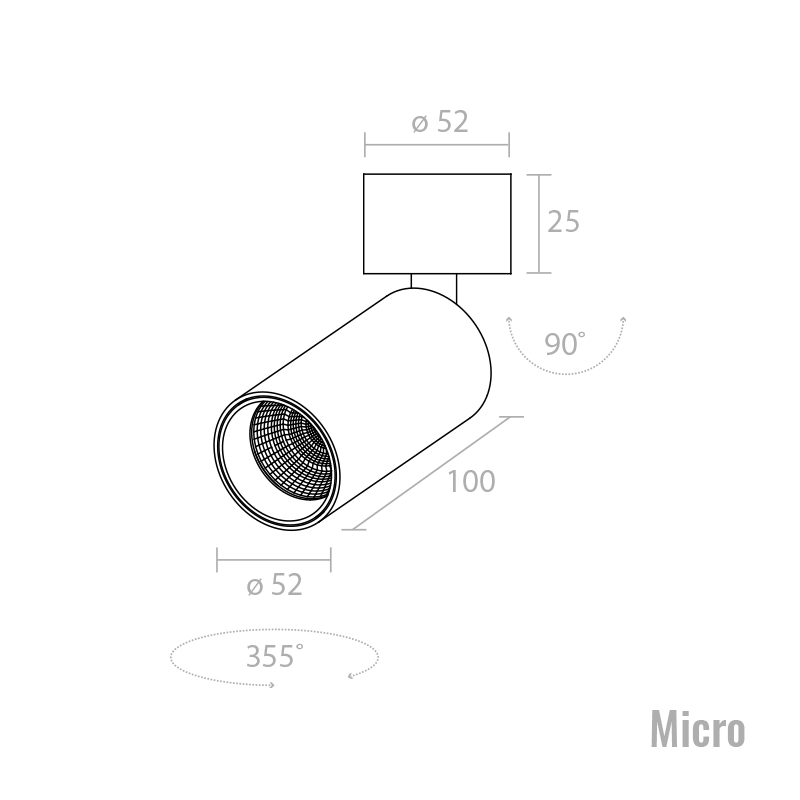

Micro 52mm – 100mm

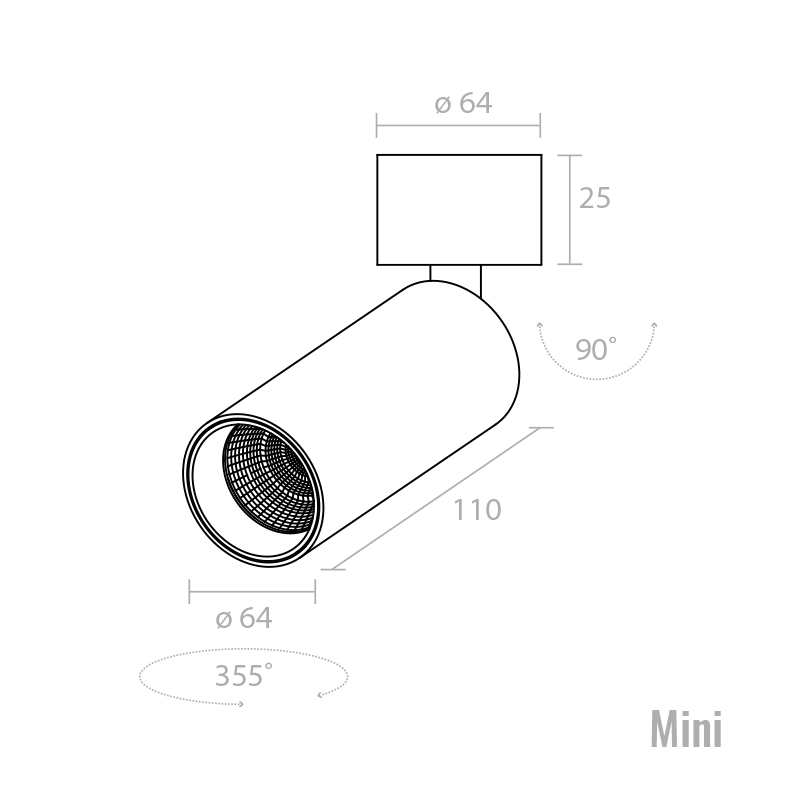

Mini 64mm – 110mm

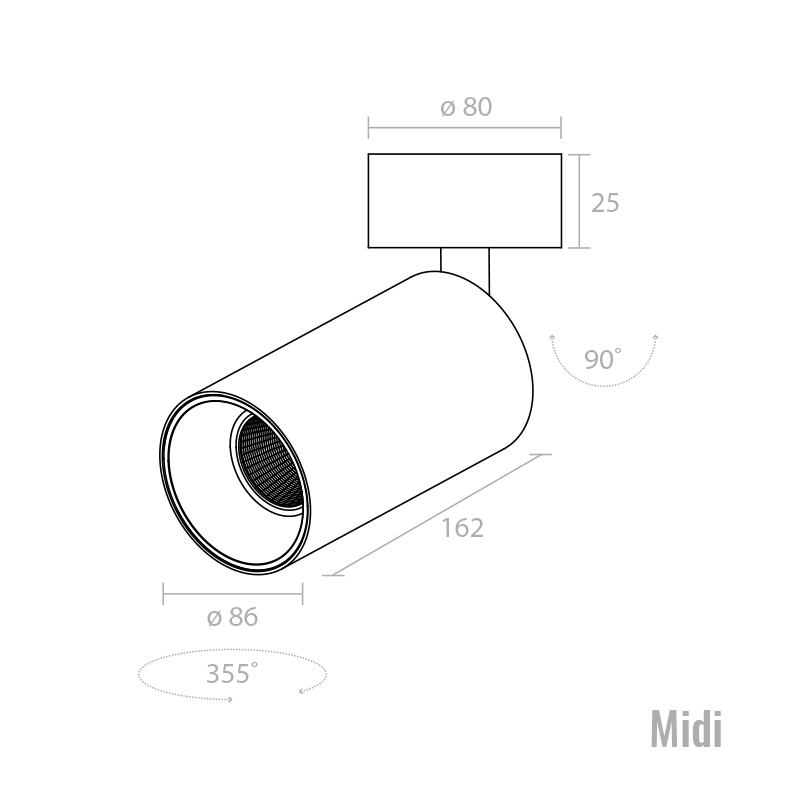

Midi 86mm – 162mm

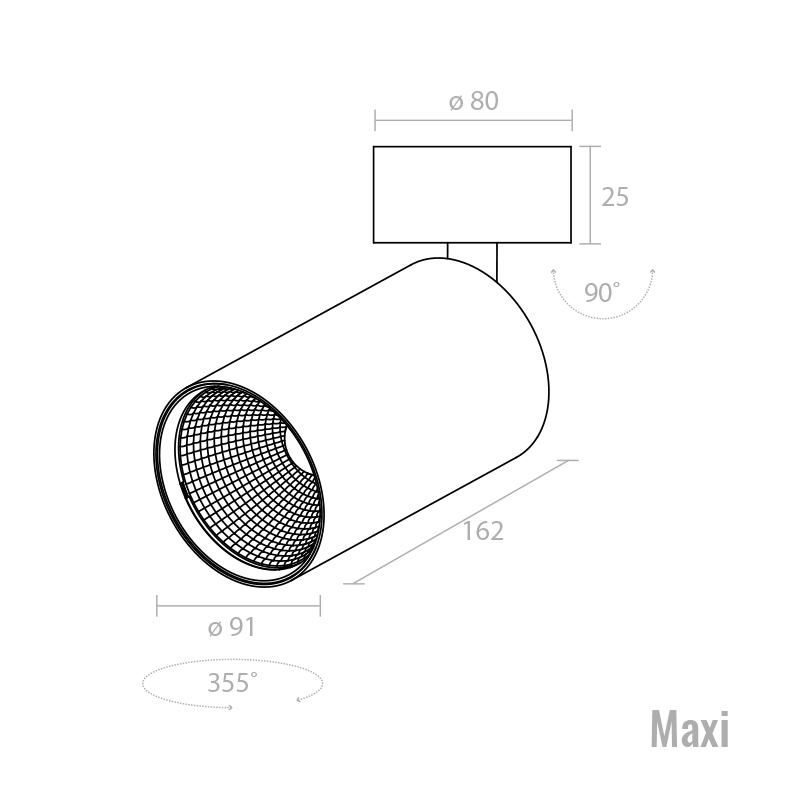

Maxi 91mm – 162mm

Mounting Type

Surface Mounted Circular

Adjustable

-/+ 90°

Rotate

355°

IP Rating

20
